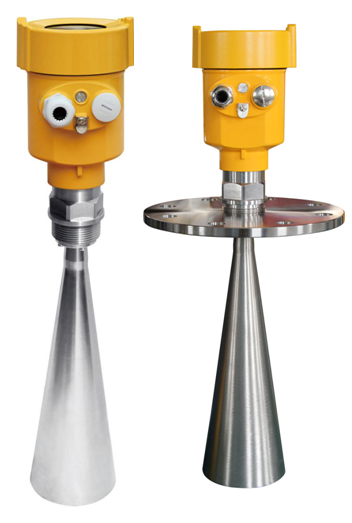

R902-26GHz Radar Level Meter

Download document

Overview

This series of radar level meter adopted 26G high frequency radar sensor, the maximum measurement range can reach up to 30 meters. Antenna is optimized further processing, the new fast microprocessors have higher speed and efficiency can be done signal analysis, the instrumentation can be used for reactor, solid silo and very complex measurement environment.

DESIGN & BENEFIT

  • Small antenna size, easy to install; Non-contact radar, no wear, no pollution.
  • Almost no corrosion, bubble effect; almost not affected by water vapor in the atmosphere, the temperature and pressure changes.
  • Serious dust environment on the high level meter work has little effect.
  • A shorter wavelength, the reflection of solid surface inclination is better.
  • Small beam angle, the energy is concentrated, can enhance the ability of echo and to avoid interference.
  • The measuring range is smaller, for a measurement will yield good results.
  • High signal-to-noise ratio, the level fluctuation state can obtain better performance.
  • High frequency, measurement of solid and low dielectric constant of the best choice.
  • APPLICATION

  • Chemicals
  • Food & Beverages
  • Machinery
  • Minerals Á Mining
  • Oil & Gas
  • Pharmaceuticals
  • Power Plant
  • Pulp & Paper
  • Water
  • Waste Water
  • TECHNICAL PARAMETERS

    Process Connection Thread G1½″A/ Thread 1½″ NPT /Flange
    Antenna Material Stainless Steel / PTF
    The outer shell
    The seal between the shell and the shell cover Silicone rubber
    Casing window Polycarbonate
    The ground terminal Stainless steel
    Power Supply
    2-wire system Standard type (16 to 26) V DCIntrinsically safe (21.6 to 26.4) V DC Power dissipation max 22.5mA / 1W Allowable ripple <100Hz Uss
    Flameproof (22.8 to 26.4) V DC, 2-wire system(198 to242)VAC, 4-wire system/110VAC, 4-wire system
    Cable parameters
    Cable entrance / plug 1-M20x1.5 cable entrance,1- blind plug
    Terminal Conductor cross section 2.5mm²
    Output and Communication
    Output signal (4 to 20) mA/RS485
    Communication protocol HART/ Modbus
    Resolution 1.6μA
    Fault signal Constant current output; 20. 5mA22mA 3.9mA
    Integral time (0 to 36) s, adjustable
    Blind area the ends of the antenna
    Max. distance measurement 30 meters (Liquid type)
    Accuracy ± 3mm
    Enclosure IP67
    Ex-Grade ExiaⅡC T6 Ga/ Exd ⅡC T6 Gb
    Frequency 26GHz
    Communication interface HART communication protocol
    Measurement interval about 1 second (depend on parameter settings)
    Adjust the time about 1 second (depend on parameter settings)
    Display resolution 1 mm
    Storage temperature (-40 to 100) ℃
    Process Temperature (-40 to 130)℃ / (-40 to 250)℃
    Pressure Max. 4.0MPa
    Seismic Mechanical vibration l0m/s², (10 to 150) Hz
